User expressions

User fields point back to a particular user in your system. Data about that user is pulled from the user management table.

Fields

Any user field that you created on your form can be a part of an expression.

You can also take advantage of these system user fields:

This expression also results in a user field:

lastcompletedstep().approvers()

Displaying user information in forms

User fields cannot display on their own. You must use the dot operator and then add the specific field you want to display. Fields must match with the user management table. For example:

_created_by.FirstName

Here is a list of default fields you can call up from the user management table:

1. If you want to display information about the Manager in a text field, you must use the dot operator to add an additional field. For example:

_created_by.Manager.Name

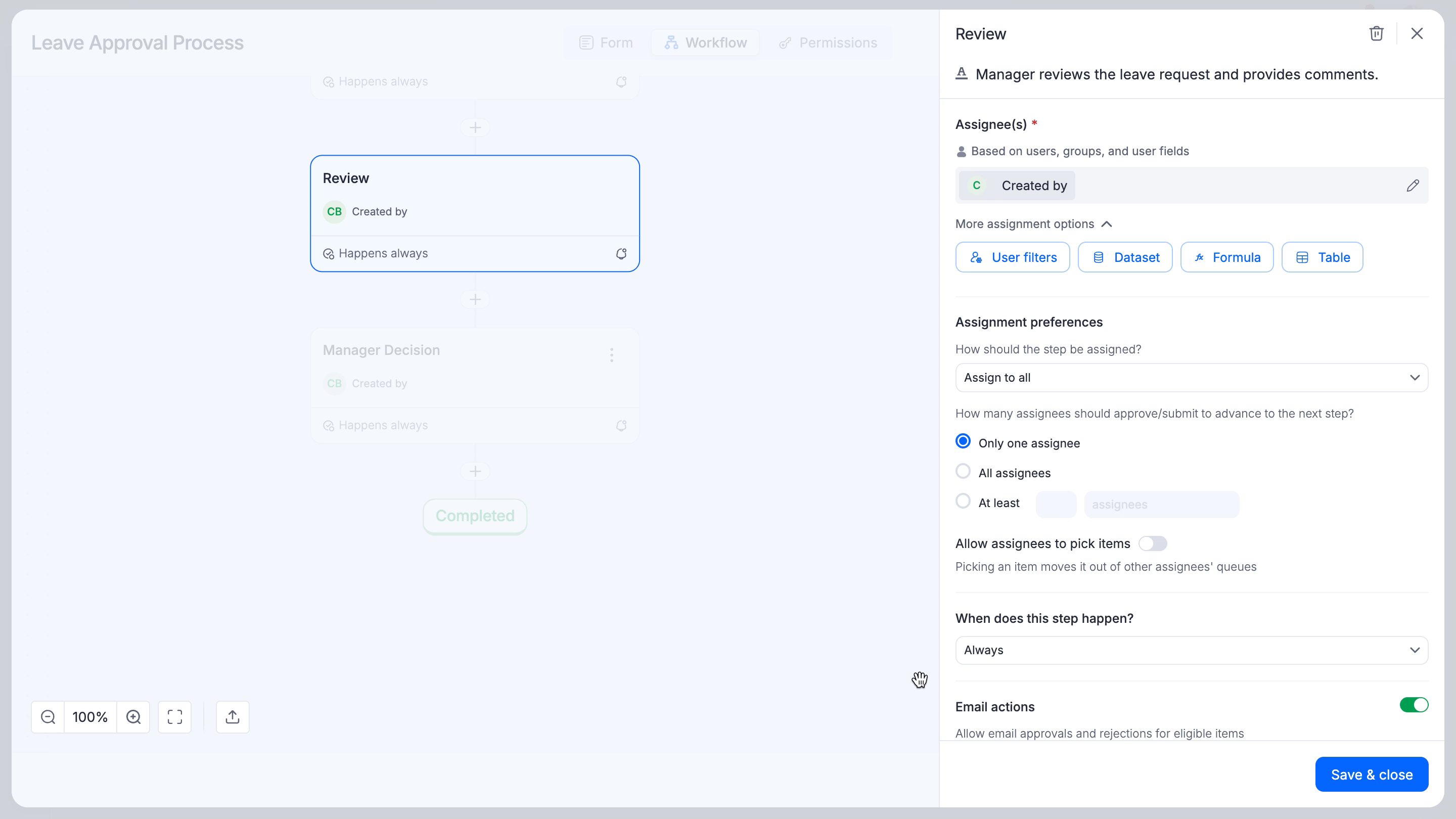

Assigning steps with user expressions

In the workflow, you can use a formula to assign a step to a user. In this expression, the data type must be a User.

You can use:

• the Field ID of any user field in your form
• a system field
• a user field called up from the user management table (such as Manager)
  (or)

You can also use the following user functions as per your requirements:

User function

Note:

Input: Email address
Syntax: user(<email_address>)

This function returns the user information based on the given email address.

If the email address is elizamendis@starkcorp.com, this function will return the user information mapped with this email address. You can also fetch the other attributes of the user by using a dot operator accordingly.

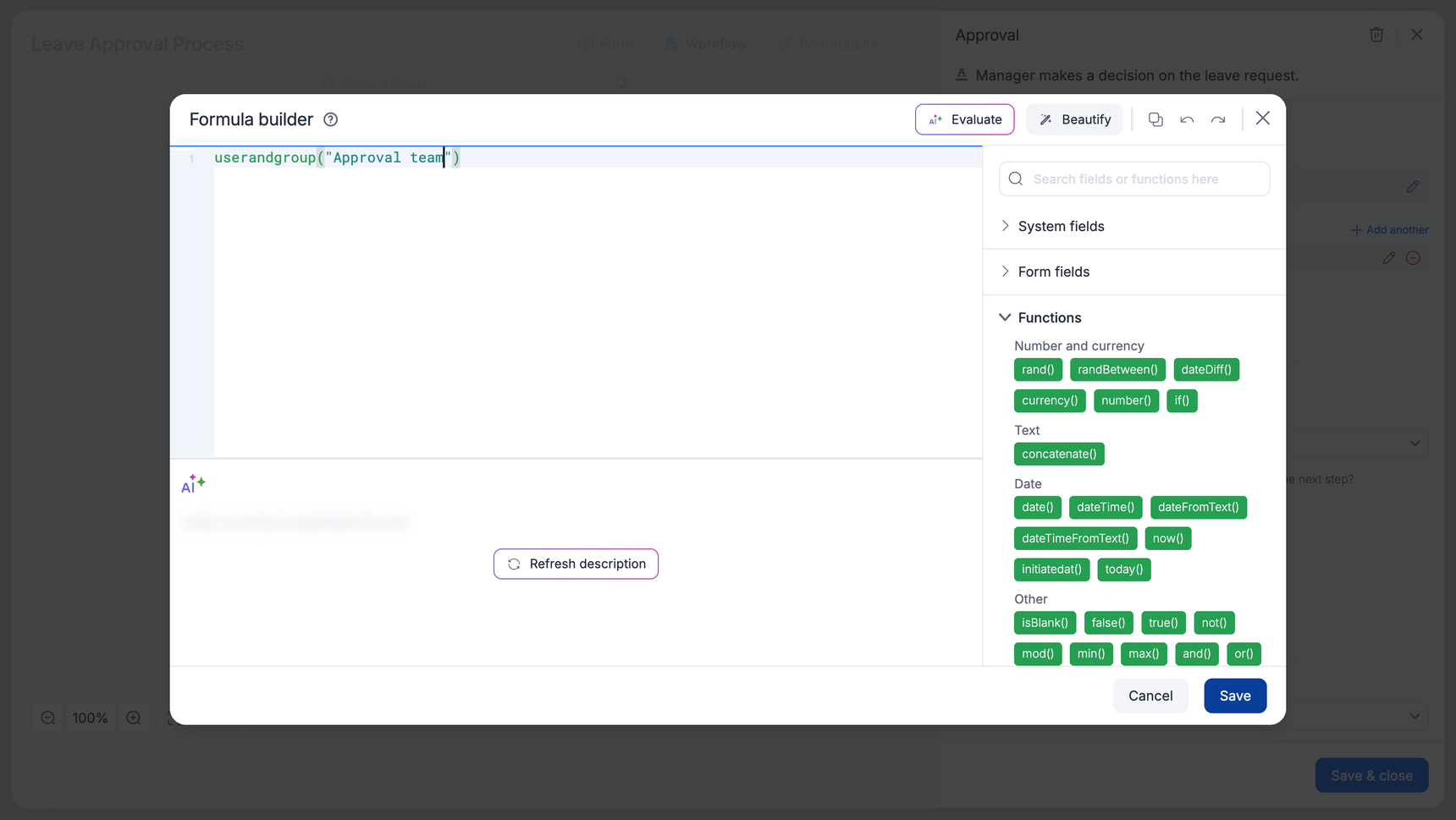

Userandgroup function

Note:

Input: Email address or Group name
Syntax: userandgroup(<email_address> | "<group_name>")

This returns the user information based on the email address or the group name passed in the function.

If the email address is elizamendis@starkcorp.com, this function will return the user information mapped with this email address. If the group name passed is “Approval team”, this function will return the relevant group with the mentioned name.

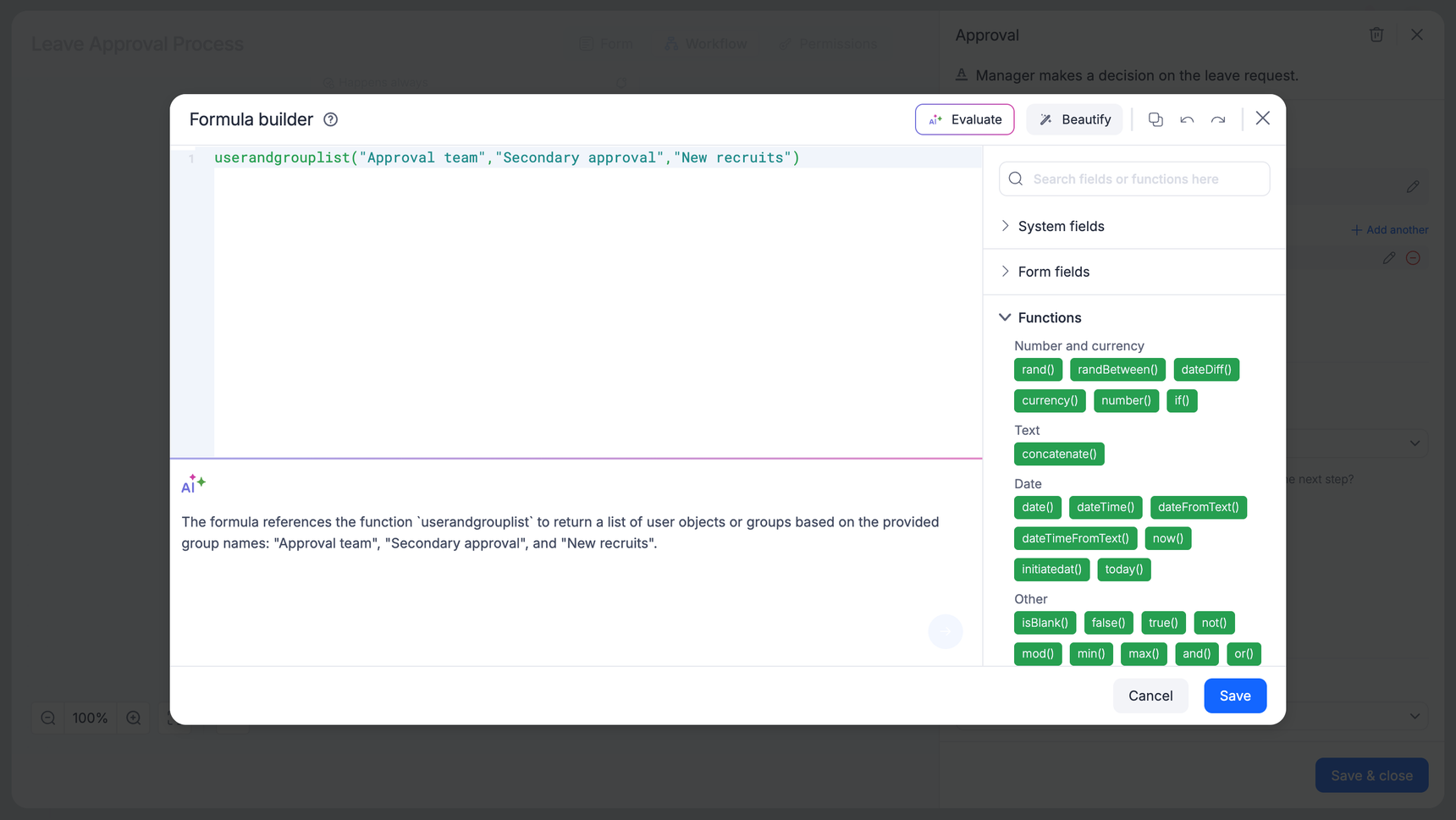

Userandgrouplist function

Note:

Input: List of email addresses or group names
Syntax: userandgrouplist([<email_address01>,<email_address02>,<email_address03>] | ["<group_name01>","<group_name02>","<group_name03>"])

This function returns a list of user objects or groups based on the input given.

For example:

userandgrouplist(“tonystark@starkcorp.com”, “jacobs@starkcorp.com”, and “elizamendis@starkcorp.com”) will set ‘Tony Stark’, ‘Jacob’, and ‘Eliza Mendis’ as the assignees for the step accordingly.

userandgrouplist(“Approval team”, “Secondary approval”, “New recruits”) will assign the step to the Finance team, HR team, and the New Recruits batch in one go.

Tip:

You can also use the IF function to assign a step, but both results must be user fields.

Using comparison operators with user fields

The equal to (=) and not equal to (<>) operators can work with user fields.

Here's a common use case. You have a step in a workflow called Manager approval and it is assigned to the creator's manager. But what if the manager is the creator?

Create a condition for that step with this expression:

_created_by<>_created_by.Manager
