Importing data from a CSV file to a dataset

You can import or upload data from a CSV file to your dataset.

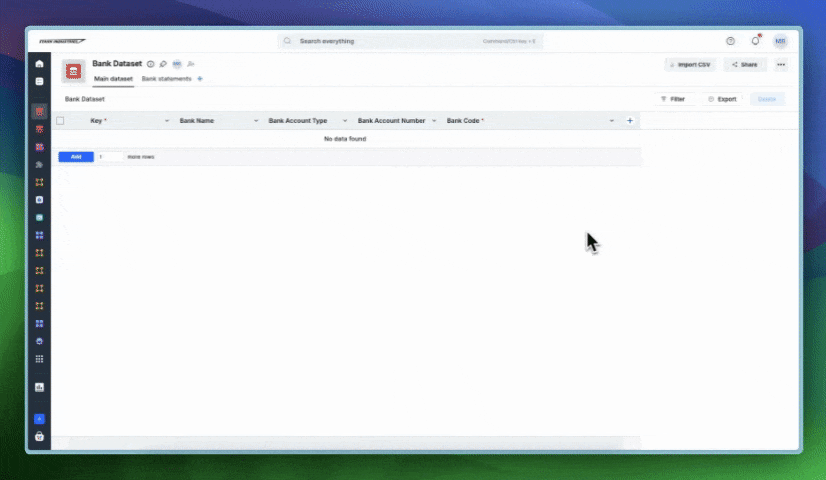

Click the Import CSV button and then select the CSV file.

While importing a CSV file, you need to be aware of the file requirements.

CSV file requirements

  • The supported CSV file type is comma-separated values.

  • The CSV column names can be alphanumeric but should contain only the following characters: space, hyphen (-), and underscore (_).

  • The CSV file should be in UTF-8 format.

  • You cannot import data from a CSV file for the following field types: Attachment, checklist, signature, and image.

  • For Yes/No fields, you can use any of these binary values: True/False, 1/0, Yes/No.

  • The supported date formats are:

Data Format

Example

DD-MMM-YY

02-DEC-20

DD-MMM-YYYY

02-DEC-2020

DD/MM/YY

02/12/20

DD/MM/YYYY

02/12/2020

MM/DD/YY

12/02/20

MM/DD/YYYY

12/01/2020

DD.MM.YY

02.12.20

DD.MM.YYYY

02.12.2020

DD-MM-YYYY

02-12-2020

YYYY-MM-DD

2020-12-02

  • The supported datetime formats are,

Datetime Format

Example

DD-MMM-YYTHH:mmZ

01-Jan-20T12:00Z

DD-MMM-YY hh:mm A

01-Jan-20 05:00 AM

DD-MMM-YY HH:mm

01-Jan-20 05:00

DD-MMM-YYYY HH:mm

01-Jan-2020 05:00

DD-MMM-YYYY hh:mm A

01-Jan-2020 05:00 AM

DD-MMM-YYYYTHH:mmZ

01-Jan-2020T05:00Z

DD/MM/YY HH:mm

01/12/20 05:00

DD/MM/YYTHH:mmZ

01/12/20T12:00Z

DD/MM/YY hh:mm A

01/12/20 12:00 AM

MM/DD/YY HH:mm

12/01/20 12:00

MM/DD/YYTHH:mm

12/01/20T12:00

MM/DD/YY hh:mm A

12/01/20 12:00 AM

MM/DD/YYYY HH:mm

12/01/2020 12:00

MM/DD/YYYYTHH:mmZ

12/01/2020T12:00Z

MM/DD/YYYY hh:mm A

12/01/2020 12:00 AM

DD.MM.YY HH:mm

01.12.20 12:00

DD.MM.YYTHH:mmZ

01.12.20T12:00Z

DD.MM.YY hh:mm A

01.12.20 12:00 PM

DD.MM.YYYY HH:mm

01.12.2020 12:00

DD.MM.YYYYTHH:mmZ

01.12.2020T12:00+05:30

DD.MM.YYYY hh:mm A

01.12.2020 12:00 PM

  • Timestamp formats

Timestamp

Example

D - Date

DD - 01, 24

M - Month

MM - 01, 02, 12

MMM - Jan, Feb

Y - Year

YY - 99, 00, 01

YYYY - 1999, 2001

T - Constant Character (As per ISO)

T

H - 24 Hour

HH - 05, 17

h - 12 Hour

hh - 03, 05

m - Minute

mm - 00, 15, 59

A - Meridiem

A - AM, PM

Z - Time Zon

Z - Z, +05:30

CSV file import

Once the file is uploaded, it will be validated and verified.

  • Kissflow checks your data types to match the fields in your dataset.

  • If you have more than 5000 rows, contact our support team.

Map fields

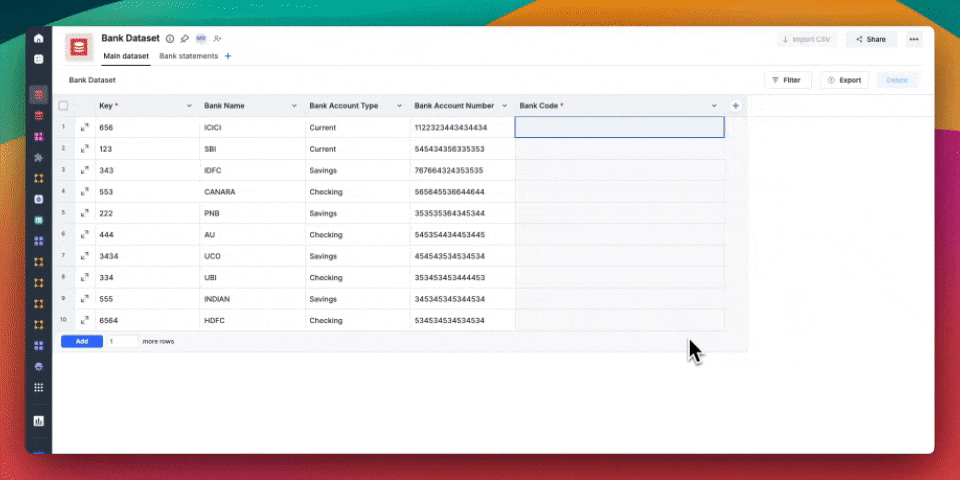

After the data is validated, click Next, and you will see a preview of the first 10 rows. Some headers of the dataset and CSV columns will be mapped automatically, but ensure to map all your dataset fields with your CSV columns. You must map one column to the Key field of the dataset. Unmapped field data will not be imported.

Import Notifications

After clicking Next, the import process will start. After it is completed, you will receive a notification and email. There are 3 possible scenarios.

  • All the imported data was successfully uploaded into the dataset.

  • Some of the data was imported successfully, but some rows failed. You can download the failed rows, work on them, and upload the file again.

  • The import was aborted. View the error logs to see what went wrong.

FAQ:

Q) Can I use the Import CSV option in the dataset when auto-lookup is enabled in your dataset's lookup field?

Ans) When an auto lookup is enabled, you cannot use the import CSV option for a lookup column in Dataset. Auto lookup is designed to automatically populate the lookup column based on existing data relationships, which conflicts with manually importing data for that column.
