Conditional paths in control connector
Conditional paths let you create multiple paths within an integration, each with its own set of actions and execution conditions. This lets you design integrations that adapt to specific conditions, giving you control to meet your specific needs.
Overview
With conditional paths, you can:
Create multiple paths within a single action.
Set unique execution conditions for each path.
Add multiple actions to each path.
Customize execution based on specific criteria.
Types of conditional paths
There are two types of conditional paths:
Execute first matching path
Executes only the first path that meets the specified condition.
Best used when you want to execute only one path, even if multiple conditions are true.
Execute all matching paths
Executes all paths that meet the specified condition.
Ideal when you want to execute multiple paths that satisfy the required condition.
Creating conditional paths
To add conditional paths to your integration:

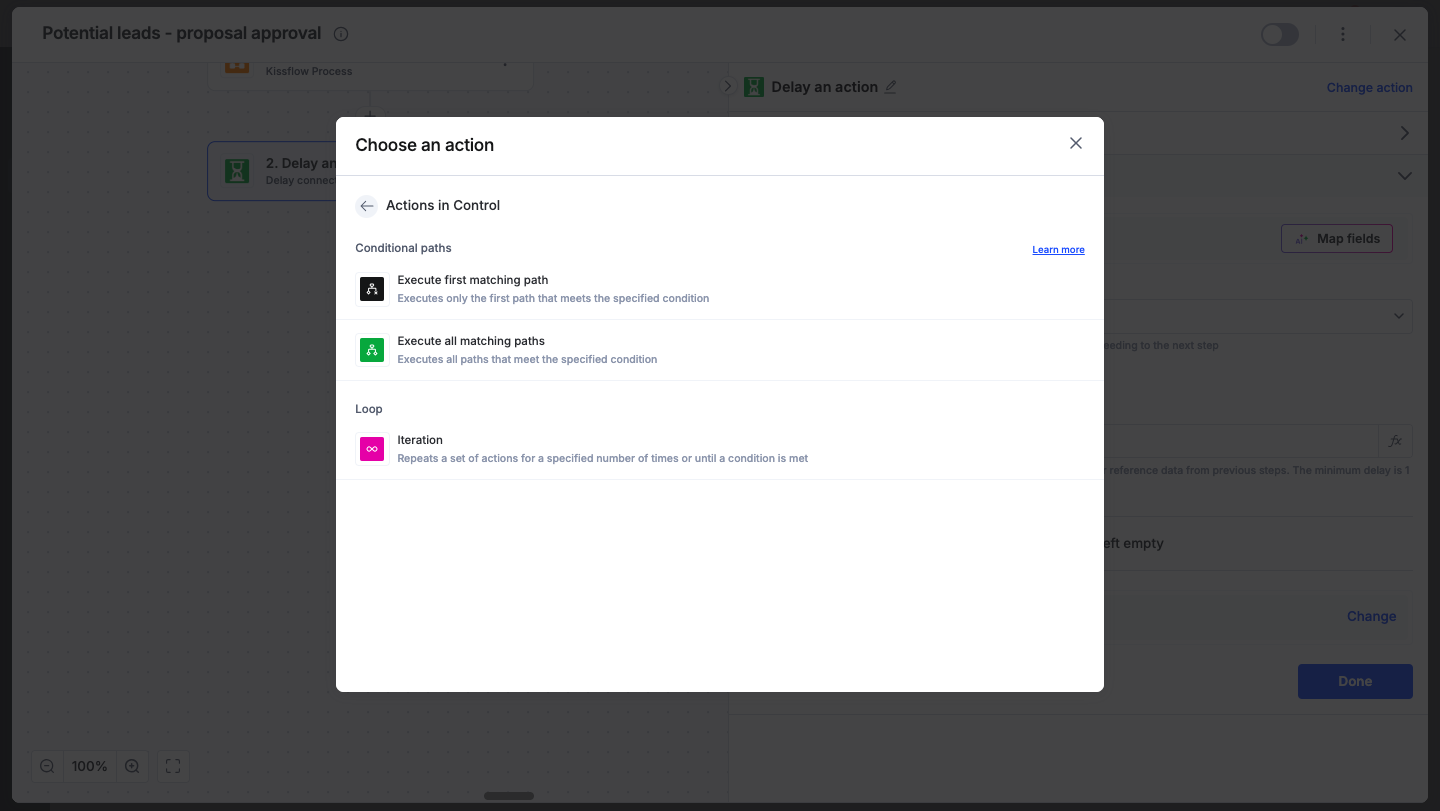

In the integration editor, click Control connector
Choose the path execution type: Execute first matching path or Execute all matching paths.
Set up the execution sequence and conditions for each path.
Add actions to each path as needed.
Execution sequence
The execution sequence differs depending on the type of conditional path chosen:
Execute first matching path
The first path is preceded by an If statement.
Subsequent paths are preceded by Else if statements.
Each path shows: If conditions are met, execute X actions (where X is the number of actions in that path).
If conditions are not met, the integration proceeds to the next path.
Only the first path with conditions that evaluate to true will be executed.
Execute all matching paths
The first path is labeled First check.
Subsequent paths are labeled Also check.
Each path shows: If conditions are met, execute X actions.
The integration proceeds to the next path regardless of the outcome of the previous path.
All paths with conditions that evaluate to true will be executed.
Configuring path conditions
For each path, you can set execution conditions that determine when that path will run. You can add multiple conditions to a single path. Paths will execute if one or all conditions are evaluated to be true. You can use two types of conditions:
Basic conditions
Choose the criteria (field to evaluate).
Select the operator (equals, greater than, etc.).
Enter the value to compare against.
Advanced conditions
You can use the formula builder to create more complex conditions that suit your use case.
Managing path actions
Actions can be added to each path by dragging them from the actions panel. You can change or remove actions by clicking the trash icon.

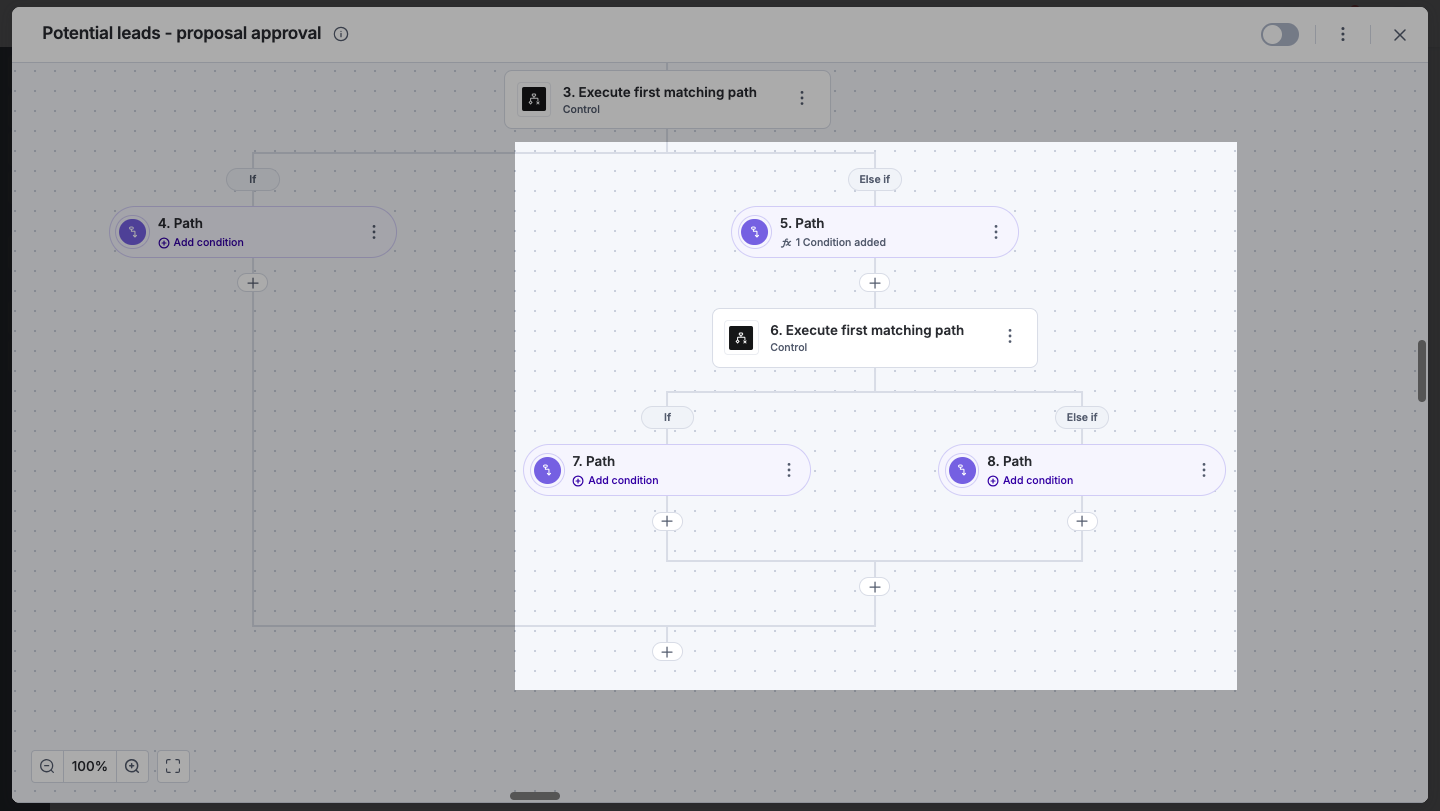

You can also nest paths within other paths for more complex conditions, creating a layered logic structure.
Path management
To manage your conditional paths effectively, you can reorder them by moving them left or right within the editor. If a path is no longer needed, it can be deleted along with its associated actions.

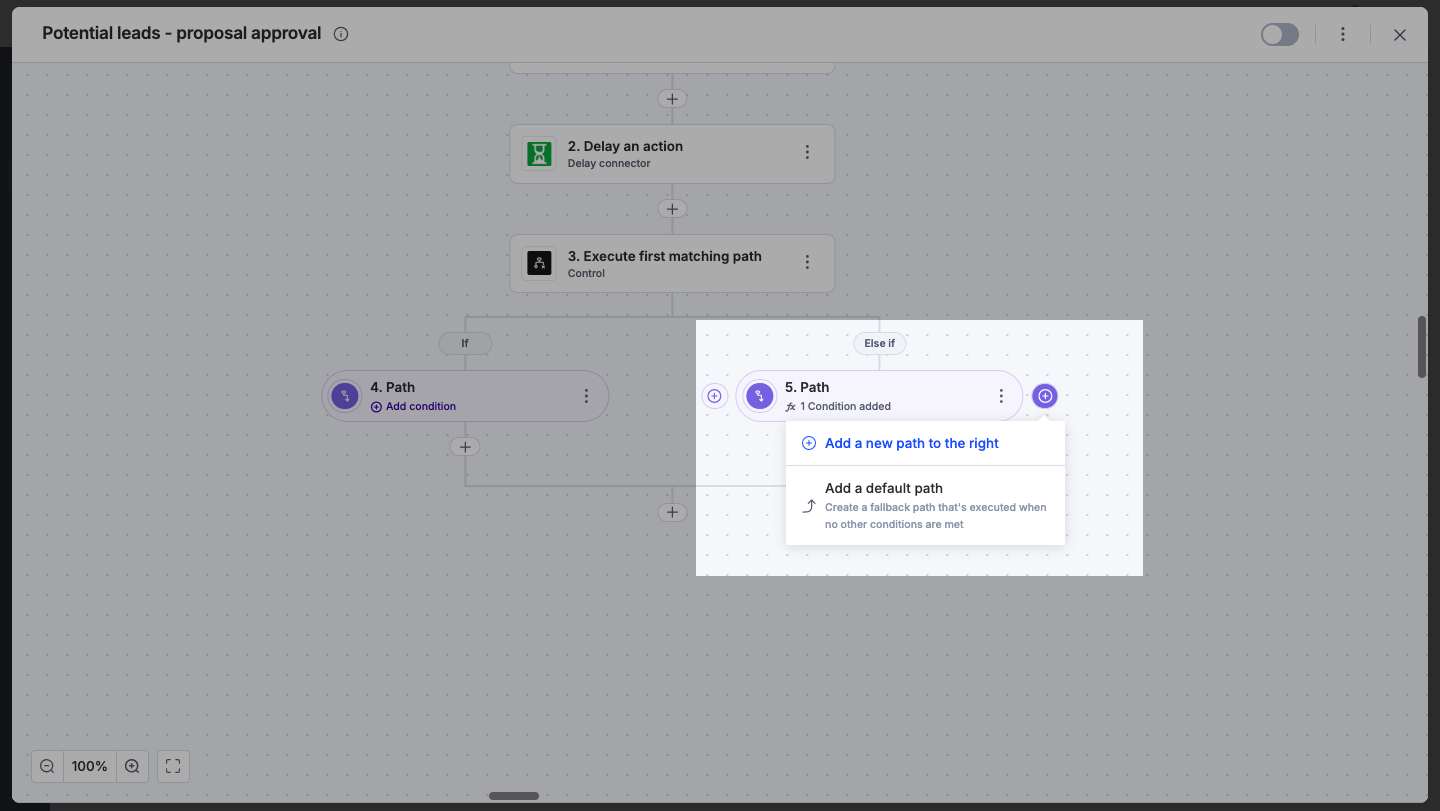

Additionally, you can add a default path that will execute if no other paths match the specified conditions, ensuring that your integration handles all possible scenarios.
Best practices
When working with conditional paths, it's important to use descriptive names for each path to make their purpose clear. Keeping the path logic as simple as possible aids in maintaining and troubleshooting in case the integration fails. A default path should be set up to handle any unexpected scenarios.
